Creating iSource 2.5 for iOS 8

Tonight I finished work on the latest version of iSource APA (2.5). It supports and now requires iOS 8 and is currently awaiting review.

iOS 8 brings great new features and fixes many bugs introduced with iOS 7's interface redesign. Along with iOS 8 is Swift and Xcode 6.

The biggest features that users will notice first are Today and Sharing widgets. Shortly after WWDC14, I decided not to include support for these in apps that didn't absolutely need them. In the case of iSource, what was I going to include in a Today widget? A fancy slogan? An inspirational quote? Nope. I didn't want to take up people's time with a Today widget unless it provided real value.

Take the Clear Today widget. If you remove all the content in the app, it decides to give you a *cough* inspirational quote. I didn't ask for it but there it is.

You also may notice a beta version of the Today widget I'm including in Bug Trackr 2.0. It tells you what you need to know while using the minimum amount of screen real estate possible.

Below, you'll see Pedometer++'s Today widget. Short and to the point, I like it.

iOS 8's Today view is still very much a UI playground and I realize developers are often scratching their heads about what to include there. Sometimes, the best thing to do is do nothing at all.

Sharing widgets are another story all together. I would love to be able to create a resource share sheet, basically the same text entry you see in the app, but available through other apps. There would be a relatively low amount of apps you would want access to iSource's Share widget in but it could still be useful.

The problem is iOS 8's sharing data flow paradigm. The way iOS 8 works is that you select the data you want to share, tap the share button, and select the place or service you want to share to. An iSource share sheet would make sense in a scenario where the user, from anywhere in iOS, wants to add an entry, they bring up the iSource Share Sheet and enter in the resources parameters. But that reverses Apple's data flow in iOS 8's share sheets. It would be confusing to the user even if Apple approved it in App Review.

So for now, we're going to stay away from Today and Sharing widgets.


Also new in iSource 2.5 are completely redesigned resource icons. They fit in a whole lot better with the iOS ⅞ aesthetic and they're included as @1x/@2x/@3x (and @4x for then that day arrives) assets. The icon redesigns were something I had started last year when I added more assets but, since the introduction of @3x assets (which I didn't have), I decided to start from scratch on a new set.

With this version and unrelated to iOS 8 I decided to reintroduce landscape support for iPhone. This was only because of the new display sizes in the iPhone 6 and iPhone 6 plus. In the 1.0 version of iSource, I enabled landscape support because text entry was done directly in the table view. When I added the Entry Sheet around iSource 2.0, I removed landscape because springs and struts in Interface Builder didn't allow me to configure the sheet view as I wanted when displayed in landscape with the keyboard visible. With the addition of Size Classes in Xcode 6, its now possible for me to create different configurations of the entry sheet based on its size class.

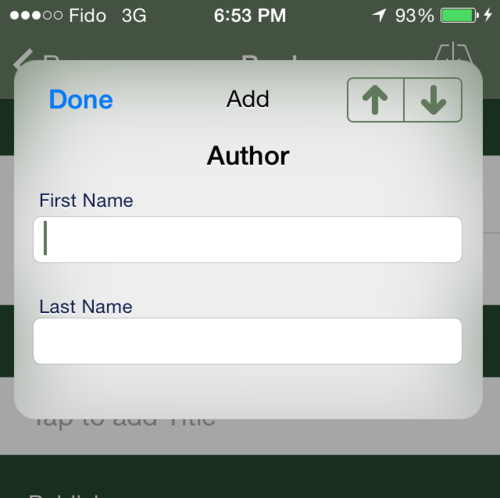

Top right you'll see the traditional version of the Entry Sheet in iSource 2.5, complete with blurred background. Bottom right is the Entry Sheet in it's new landscape configuration. Nice eh? Thanks Size Classes!


At WWDC14, I was highly interested in playing around with iOS 8's new Embedded Framework support. iSource 2.5 includes the new iSourceKit framework and it's where I've put a lot of code and resources that I share between iSource APA and MLA. Without going into too much boring nitty gritty about maintaining two versions of the same app, frameworks are a godsend. For code within iSourceKit, I've been able to cut debug time in half and every minute saved debugging is one I can now spend on making great feature. Thank you Embedded Frameworks engineers at Apple!
